What is involved with installing a Business Phone System? For the do-it-your-selfer it is not a problem. All you need is knowledge of wiring. Most phone systems use two wire to connect a telephone to the Business Phone System like the NEC and some Business Phone Systems use four wires to connect telephones to the Business Phone System line the Panasonic. All of the incoming lines use two wires to connect the incoming lines to the phone system. Below is an example and a wiring schematic of how a Business Phone System is Connected in your office.

NEC Phone System Self Installation

Do It Your-Self Installation
EZ Phone systems offers services by phone to help with your NEC Phone System Installation. A do-it-your-selfer can perform an NEC installation with the NEC EZ Installation cable connector kit provided. Please follow these instructions as well as your installation guide which your received with your NEC phone system starter kit.

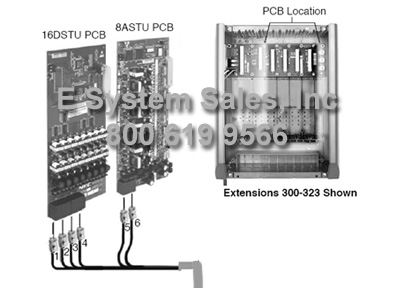

Do-it-yourself installation. The NEC EZ Installation cable connector kit makes installing the NEC phone system a breeze. Click on the link on the right side of the page for an exploded view of the NEC EZ Installation cable connector kit. After you have followed the instructions on this page and in the NEC installation manuals you have received with your phone system, your phone system will be ready to power up. All NEC systems are plug and play. You will be ready to send and receive phone calls once the phone system is installed.

NOTE: 1 pair of wires is required on all incoming phone lines and phone extensions. A 66 Block termination punch down tool is also required for installation.

Punch down the appropriate pair of wires for each terminal. For example, the 300R & 300T terminals are the terminals for the first phone extension which is extension 300, and the Line 1R and the Line 1T terminals are for the first incoming telco line witch is Line 1.

NEC Phone System Self Installation Facts

RJ61X	25 Pair Cable
RJ61X	Block Term	Color Code	Function
Cable 1	1 2 3 4 5 6 7 8	White-Blue Blue-White White-Orange Orange-White White-Green Green-White White-Brown Brown-White	300 T 300 R 301 T 301 R 302 T 302 R 303 T 303 R
Cable 2	9 10 11 12 13 14 15 16	White-Slate Slate-White Red-Blue Blue-Red Red-Orange Orange-Red Red-Green Green-Red	304 T 304 R 305 T 305 R 306 T 306 R 307 T 307 R
Cable 3	17 18 19 20 21 22 23 24	Red-Brown Brown-Red Red-Slate Slate-Red Black-Blue Blue-Black Black-Orange Orange-Black	308 T 308 R 309 T 309 R 310 T 310 R 311 T 311 R
Cable 4	25 26 27 28 29 30 31 32	Black-Green Green-Black Black-Brown Brown-Black Black-Slate Slate-Black Yellow-Blue Blue-Yellow	312 T 312 R 313 T 313 R 314 T 314 R 315 T 315 R
Cable 5	33 34 35 36 37 38 39 40	Yellow-Orange Orange-Yellow Yellow-Green Green-Yellow Yellow-Brown Brown-Yellow Yellow-Slate Slate-Yellow	Line 1T Line 1R Line 2T Line 2R Line 3T Line 3R Line 4T Line 4R
Cable 6	41 42 43 44 45 46 47 48	Violet-Blue Blue-Violet Violet-Orange Orange-Violet Violet-Green Green-Violet Violet-Brown Brown-Violet	Line 5T Line 5R Line 6T Line 6R Line 7T Line 7R Line 8T Line 8R
	49 50	Violet-Slate Slate-Violet	NC NC

Panasonic KX-TA824 EZ Installation

Do It Your-Self Installation
E System Sales, Inc. offers services by phone to help you with your Panasonic KX-T Installation. A do-it-your-selfer can perform a Panasonic KX-T installation if the KX-T Installation cable and block kit is purchased. Please follow these instructions as well as your Installation CD which your will receive with your Panasonic Telephone Equipment

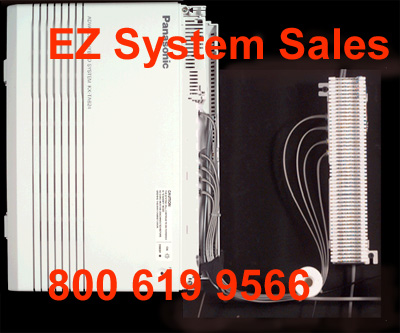

Do-it-yourself installation. The Panasonic KX-T Installation cable and block kit helps when installing the Panasonic KX-TA824. All Panasonic phone systems KX-T are plug and play. You will be ready to send and receive phone calls.

NOTE: 1 pair of wires is required on all incoming phone lines and 2 wires is required on all phone extensions. A 66 Block termination punch down tool is also required for installation.

Punch down the appropriate pair of wires for each terminal. For example, the 101R, 101T, 101P& 101G terminals are the terminals for the first phone extension which is extension 101, and the Line 1R and the Line 1T terminals are for the first incoming telco line witch is Line 1.

RJ11X	66 Block
RJ11X	Block Term	Color Code	Function
Cable 1	1 2 3 4 5 6 7 8	Wht-Blue Blue-Wht Wht-Orange Orange-Wht Wht-Green Green-Wht Wht-Brown Brown-Wht	101 T 101 R 101 P 101 G 102 T 102 R 102 P 102 G
Cable 2	9 10 11 12 13 14 15 16	Wht-Blue Blue-Wht Wht-Orange Orange-Wht Wht-Green Green-Wht Wht-Brown Brown-Wht	103 T 103 R 103 P 103 G 104 T 104 R 104 P 104 G
Cable 3	17 18 19 20 21 22 23 24	Wht-Blue Blue-Wht Wht-Orange Orange-Wht Wht-Green Green-Wht Wht-Brown Brown-Wht	105 T 105 R 105 P 105 G 106 T 106 R 106 P 106 G
Cable 4	25 26 27 28 29 30 31 32	Wht-Blue Blue-Wht Wht-Orange Orange-Wht Wht-Green Green-Wht Wht-Brown Brown-Wht	107 T 107 R 107 P 107 G 108 R 108 T 108 P 108 G
Cable 5 Un Used	33 34 35 36 37 38 39 40	Wht-Blue Blue-Wht Wht-Orange Orange-Wht Wht-Green Green-Wht Wht-Brown Brown-Wht	Line 1 Tip Line 1 Ring Line 2 Tip Line 2 Ring Line 3 Tip Line 3 Ring Un Used Un Used
Cable 6	41 42 43 44 45 46 47 48	Wht-Blue Blue-Wht Wht-Orange Orange-Wht Wht-Green Green-Wht Wht-Brown Brown-Wht	Un Used Un Used Line 1T Line 1R Line 2T Line 2R Line 3T Line 3R

Tools and Proceedures

The above diagram is a schematic view of the telco 66 Block provided in the installation kit. Click here for a exploded view of a 66-Block. The installer will notice that there are 2 empty terminals on the bottom of the 66 Block. That is normal.

PC Admin programming is also available for programming the NEC phone system through a Windows based Personal Computer. A Windows 2000 or XP PC Computer with an available USB or Ethernet port, PC Admin cable, and Windows computer skills are required to perform phone system programming.

Locating pairs of wires for CO/Trunk lines
Take your telephone but set.	Take the Alligator clips
Individually plug the two Alligator clips on to each pair of color coded (white/Blue blue/white) wires.	Listen for dial tone, if dial tone exists call your Cell phone and check the caller IP LCD screen to check the phone number you have dialed from.
Locating wire pairs for telephone connections.
Plug the tone generator into the telco phone jack of the office location where the phone is to be installed	In the phone room or distribution facility run the tone amplifier along each of the connector punch down interface on the 66 Punch Down Block until you hear the tone at to its loudest point over two of the conductors and you have found the pair of wires foe the phone on the office jack in question.
